Foreword:
In mid-September this year, Hisense Electric held an intelligent 3D LED LCD TV conference in Beijing with the theme of “Beyond Audiovisual Intelligenceâ€. At the meeting, Hisense released its first Hi-smart Smart 3D flagship TV XT39G3D series. It adopts HisTV-OS operating system independently developed by Hisense. Users can install and uninstall programs provided by third-party service providers such as software and games, and can achieve integration of the three networks of the wide network, communication network and the Internet. Recently, Hisense 3D LED TV LED46XT39G3D has arrived PConline evaluation room, the following together to see how this smart 3D TV performance.
Brand Model: Hisense LED46XT39G3D
Reference Price: 15590 yuan (send 19-inch touch screen LCD TV + 2 pairs of 3D glasses)
Related article: "Smart 3D TV! Hisense 2010 Fall Conference Report"
First, Hisense LED46XT39G3D first evaluation after the test
Hisense flagship 3D LCD TV XT39G3D series is positioned as a high-end LED TV, with three sizes of 55, 46 and 42 inches. The models are LED55XT39G3D, LED46XT39G3D and LED42XT39G3D. Hisense 3D flagship TV XT39 series is the biggest selling point is that it is a smart TV, based on the powerful blue engine platform and HiTv OS intelligent operating system, equipped with multi-core high-speed processing chip, can achieve application software development, upload and download. In addition, XT39G3D also has a Web browser, video entertainment, WebTV, China TV, Internet Neighborhood, wireless screen and other functions, the performance configuration is quite powerful.
Hisense LED46XT39G3D picture evaluation forum offer
Hisense XT39G3D series compared with the previous T29GP3D series, both are 3D TVs, the biggest difference is that XT39G3D is a smart TV, a new addition to WEB browser, China TV, wireless screen, cable digital TV and other functions .
Hisense LED46XT39G3D currently quotes 15,590 yuan, presented 19-inch touch screen LCD TVs, 2 pairs of 3D glasses. In terms of its quotations and performance, its competitors mainly include the Samsung C7000 series, the Sony NX710 series, and Hisense XT39G3D with its powerful smart operating system, rich USB playback and Internet application applications hit the 3D TV market.
Quality performance, 3D effects, power consumption, USB streaming media playback evaluation is the focus of this evaluation, the author will from the 3D effect reviews, point to point, gray level, color performance, dynamic contrast, high-definition video, USB video, power consumption comparison Other aspects of the evaluation, evaluation of picture effects for reference only, let us immediately enter the evaluation article. >>
Second, Appearance Appearance of Hisense LED46XT39G3D
Hisense XT39 series is beautifully fashioned. It adopts a two-color process of black and transparent crystals. The whole machine is crystal clear. The lower frame is accompanied by a silver alloy material, which not only matches the color but also enhances its three-dimensional appearance. The XT39 series uses an X-mechanical base that is more beautiful than a traditional rectangular design and does not appear bulky.
Hisense LED46XT39G3D picture evaluation forum offer
Hisense XT39 series body screen marked with Hisense "Anyview" sign in the upper left corner, the lower left corner of the fuselage is distributed touch-type OSD button, the lower right corner is marked with "3D", "LED", "SRS TruSurround XT" and other words, Explained that it supports 3D images, uses LED backlights, supports virtual surround sound systems and other functions.
Hisense smart 3D TV XT39G3D screen frame details
Hisense smart 3D TV XT39G3D screen frame details
Hisense XT39 uses a white LOGO, just below its classic smiling smiley design, after the boot will emit a faint purple light, make people feel very stylish.
Hisense Smart 3D TV XT39G3D LOGO
Hisense LED46XT39G3D OSD button on the bottom left of the screen, using a touch-based design, including the menu, signal source, volume, program, power switch, a total of seven buttons.
Hisense Smart 3D TV XT39G3D OSD Button
The XT39 series uses an X-mechanical base, which is more beautiful than a traditional rectangular design, and does not appear clunky. The silver metal is full of technical sense.
Hisense smart 3D TV XT39G3D base
Hisense LED46XT39G3D body thickness is only 38.2mm, from the side view is far less than the width of a common IC card, regardless of wall or base placement, can get very good visual enjoyment.
Hisense LED46XT39G3D fuselage side view
Hisense LED46XT39G3D the back of the fuselage is relatively simple, the body nameplate marked on the rated power of 160W, and wrote the words Trusurround XT.
Hisense LED46XT39G3D back of the fuselage
Hisense LED46XT39G3D body nameplate
In terms of interfaces, the XT39 still adopts an inverted “L†arrangement, which is divided into a side interface area and a bottom interface area. It is equipped with 3 sets of HDMI high-definition audio and video interfaces, 2 sets of USB interfaces, 1 set of VGA interfaces, and 1 set of color difference input interfaces. , 1 set of LAN interface, a set of headphone jack, in addition also has a PCMCIA slot, interface configuration is very rich.
Hisense Smart 3D TV XT39G3D Side Interface Area
Hisense Smart 3D TV XT39G3D on the back interface area
The XT39G3D series remote control adopts a rectangular design. Various digital keys and function keys are fully configured. Many shortcut keys can be directly found on the remote control, which is more convenient to use.
Hisense Smart 3D TV XT39G3D Remote Control
The design of Hisense XT39G3D series is very fashionable. It adopts a two-color process of black and transparent crystals. The whole machine looks crystal clear. With X-mechanical base design, the thickness of 38.2mm makes it look very thin and the visual effect is quite satisfactory. . >>
Third, Hisense LED46XT39G3D menu layout
Hisense LED46XT39G3D menu layout has been greatly improved compared to the previous model, the first menu uses a vertical arrangement, the secondary menu is a horizontal arrangement. The first level menu includes programs, media, smart TV, settings, presentations, help and other items.
Hisense LED46XT39G3D menu layout
In the image setting menu, items such as brightness, contrast, hue, sharpness, hue, and color temperature are frequently adjusted, and the advanced setting menu allows the user to fine-tune various items.
Hisense LED46XT39G3D image settings menu
In the 3D settings menu, options such as 3D switch, 3D format, left and right conversion, 2D to 3D, viewpoint, depth of field, 3D to 2D, etc. are provided. These items are all practical.
Hisense LED46XT39G3D3D settings menu
Hisense LED46XT39G3D provides seven image mode options, namely standard, sports field, amusement hall, cinema, concert, studio, and custom. The author only uses standard, cinema, and custom three modes as examples to provide reference for netizens. .
Hisense LED46XT39G3D standard image mode effect
Hisense LED46XT39G3D cinema (left), custom (right) image mode effects
Fourth, Hisense LED46XT39G3D point-to-point test
During the peer-to-peer test, the PC used by the author was the Lenovo ThinkPad SL400 series, and the signal was input to the TV through the HDMI interface. First set the PC resolution to 1920×1080, refresh rate is 50Hz, and then set the 47T29GP screen display to “point-to-point†mode in the menu. Hisense LED46XT39G3D full HD point-to-point is presented in front of the author. From the point of view of the actual display effect, Hisense LED46XT39G3D text strokes clear, full HD point-to-point effect is satisfactory.
Hisense LED46XT39G3D full HD point-to-point effect
In the Monoscope full HD 1080p signal test, Hisense LED46XT39G3D in the horizontal line, vertical lines, oblique lines, circles and other lines on the relatively clear performance, and in the performance of the 1080p line in general, 4 lines there are subtle adhesions.
Hisense LED46XT39G3D full HD point-to-point effect
The following is a close-up view of the pixel of the LCD panel of Hisense LED46XT39G3D. From the pixel shape, the white, red, blue, and green colors of the white image are arranged in vertical rectangles. The interior of the pixel is divided into upper and lower parts, and the upper and lower boxes are Both of these pixels are different from the pixel types of various types of panels that are currently on the market, so the source of the panel cannot be determined.
Hisense LED46XT39G3D panel pixels close up
Hisense LED46XT39G3D menu layout is concise and clear, operation is quite simple, provides a variety of image refinement adjustment items, for a variety of screen styles of consumers personalized adjustments. 46XT39G3D can achieve full HD point-to-point, the effect is satisfactory, the source of the LCD screen is not yet determined. >>
Five, Hisense LED46XT39G3D 3D principle of analysis
3D is an abbreviation for English Three-Dimensional, which is a three-dimensional image. Due to the difference in the angles of the objects observed by both eyes, it can be discerned that the objects form a stereoscopic vision far and near, and 3D TV uses this principle to separate the images seen by the left and right eyes, and finally synthesize the separated images in the human brain. Form a three-dimensional image at your fingertips.
Hisense LED46XT39G3D 3D principle of analysis
There are many ways to achieve 3D video viewing, which can be mainly divided into naked-eye type and glasses type. Among them, the naked-eye raster display method and holographic display method are difficult to achieve, and it is expensive and difficult to popularize. Spectacle type is divided into color separation method, light division method, time division method and other technologies, color separation method is the earliest and cheapest 3D technology, but easy to cause color cast, 3D effect is also the worst; light division method that is high school textbook introduction The polarizing 3D technology is better than the color separation method, but the screen is difficult to achieve full HD, brightness is relatively low; time division method is also known as active shutter 3D technology, widely used, excellent results, the disadvantage is that glasses are expensive and some of the screen will A sense of flicker. Hisense 46XT39G3D uses mainstream active shutter 3D technology.
Hisense LED46XT39G3D 3D principle of analysis
In the 3D display solution, Hisense XT39G3D series uses a 3D video chip, true +240Hz LED, active shutter 3D glasses program. Hisense 3D TV relies on the original Lanqing LED LCD TV platform, together with the latest 3D video chip technology, to achieve active shutter 3D technology. Of course, when consumers watch 3D images, they should wear active shutter 3D glasses.
Hisense LED46XT39G3D 3D principle of analysis
Hisense 46XT39G3D configured active shutter 3D glasses using USB charging mode, the glasses used as the main color appearance of black, narrow and narrow before the shape, the author tried to wear glasses after wearing 3D glasses, do not think there is any inconvenience, but Feeling slightly narrow at the back of the glasses, there is a feeling of being clamped.
Hisense LED46XT39G3D 3D Glasses
The Hisense 46XT39G3D uses the mainstream active shutter 3D technology. This technology not only has the advantages of excellent 3D effects, can achieve full HD, and will not reduce the brightness, but also has the advantage of wide application and content resources, although glasses The price is a little expensive, but from the current manufacturers to buy TV presents two pairs of 3D glasses promotional strategies, the market outlook is still good. >>
Six, Hisense LED46XT39G3D 3D screen effect
In order to allow users to experience the difference between 3D images and 2D images more intuitively, the authors used the naked eye and the 3D glasses to perform screen captures. In the naked eye, we see 3D images with ghost images. The picture taken through the 3D glasses is a 2D image. By comparing the two, we can still find many differences and the general effect of 3D images. The following is the 3D screen effect of "Alice in Wonderland" played on a 3D Blu-ray player.
Hisense LED46XT39G3D 3D effect test (naked eye shot)
Hisense LED46XT39G3D 3D effect test (photographed through glasses)
The first is the depth of field of the picture. After carefully observing the following 3D pictures and 2D pictures taken through the glasses, we can roughly feel the depth of field effect from the silhouette of the bird or two different locations around the same plant.
Hisense LED46XT39G3D 3D effect test (naked eye shot)
Hisense LED46XT39G3D 3D effect test (photographed through glasses)
Followed by the screen brightness, wear 3D glasses, the screen brightness is bound to have a certain loss, if you want to better see the details of the dark part of the screen, it must improve the overall brightness of the screen. From the actual effect point of view, when the brightness of the 3D effect screen is moderate, the brightness of the 2D screen appears to be high, and consumers need to make a balance between the two.
Hisense LED46XT39G3D 3D effect test (naked eye shot)
Hisense LED46XT39G3D 3D effect test (photographed through glasses)
Again is the screen color, compared to CCFL backlight LCD TV, LED LCD TV in the picture has made some progress in color, but is limited to LCD TV display principle, to improve the brightness of the viewing screen, the picture style will be slightly biased white effect.
Hisense LED46XT39G3D 3D effect test (naked eye shot)
Hisense LED46XT39G3D 3D effect test (photographed through glasses)
The use of 3D technology in the LCD TV platform will inevitably create a problem, that is, the problem of viewing angle. The angle of viewing here is not the viewing angle, but the angle between the horizontal position of the 3D glasses and the TV. In a word, the problem is whether you can wear 3D glasses and watch TV on your side. Judging from the actual playback effect, when the 46XT39G3D is wearing 3D eyes, the brightness of the screen through the glasses will be continuously attenuated as the viewing angle increases. When the angle between the glasses and the screen reaches 90°, the screen will be completely blocked.
Hisense LED46XT39G3D 3D viewing angle test
Compared to the HDMI 1.3 solution of the T29GP3D, the playback channel of Hisense XT39G3D has been upgraded, and it can be connected to 3D Blu-ray players using the HDMI 1.4 solution to play 3D discs. From the perspective of actual playback effects, the depth of field of the XT39G3D is good and the crosstalk phenomenon is also slight. However, like many 3D TVs, the 46XT39G3D viewing angle problem also exists. >>
Seven, Hisense LED46XT39G3D gray scale comparison test
Since the screen shot has undergone the necessary software processing and the actual effect of the netizens' display has been affected, the screen finally displayed on the screen will be different from the actual effect of the TV, so the actual effect is subject to the author's text description. The author uses a Hi-Definition Reference Disc test disc, Sony PlayStation 3 as a Blu-ray player. The digital camera used was a Canon 50D with a Canon EF-S 18-200mm f/3.5-5.6 IS.
The first test is a 15-gradient grayscale test. From the actual screen, Hisense LED46XT39G3D performed satisfactorily, and each gray level can be easily distinguished. The difference between 0, 1, 14 and 15 gray levels is obvious.
Hisense LED46XT39G3D 15 Gradient Grayscale Test
In the black gray-scale tolerance test, the charcoal line-streak road can be clearly seen in the charcoal backlight position, and the charcoal texture can be seen at the charcoal's light position. However, careful observation can reveal the brightness of some areas. High, from the overall point of view, Hisense LED46XT39G3D performed well and the effect was satisfactory.
Hisense LED46XT39G3D charcoal black test
Eight, Hisense LED46XT39G3D color performance test
First of all, we use DisplayX to perform full color gamut color over test on Hisense LED46XT39G3D. From the aspect of the picture, the color is bright and transparent, but the transition between pink and crimson, yellow and green is rushed, especially yellow and The dividing line between the green is clearly visible.
Hisense LED46XT39G3D full color domain color transition test
For the color performance of the TV, the color that is most difficult to accurately display is golden yellow. In the test process, Hisense LED46XT39G3D has better performance for light blue and pink, accurate color, clear texture, and no overexposure. In the golden appearance, the texture is also clear and the details of the golden thread can be well represented.
Hisense LED46XT39G3D color performance test
Hisense LED46XT39G3D color performance test
The two girls with red, white, and yellow roses have accurate three-colored roses. However, the color of the girl's face has a color cast that is not delicate enough compared to the true color.
Hisense LED46XT39G3D color performance test
Hisense LED46XT39G3D color performance test
Hisense LED46XT39G3D can clearly display 15 gradient grayscales. The full color gamut color transition performance is more general, and the performance of the skin color is slightly less accurate, but it performs better for the most difficult to perform gold and other colors. >>
Nine, Hisense LED46XT39G3D dynamic screen test
In this part of the test, you need to pay attention to the fast moving train front window, car body license plate, the author used the same ISO and aperture in the shooting process, the parameters for the ISO-400, F4.5, exposure time is 1/100 seconds. Hisense LED46XT39G3D has true +240Hz speed drive technology, from the perspective of the train in progress, the front part of the train ghosting phenomenon is relatively minor, but from the perspective of the train window, it can still feel slightly.
Hisense LED46XT39G3D dynamic picture effect test
In the high-definition video of a section of vehicles that is played below, we need to observe the car's license plate and the outline of the car body. Hisense LED46XT39G3D can play smoothly for the entire video, and the license plate and the vehicle profile all have some ghost phenomenon, and the dynamic effect is good.
Hisense LED46XT39G3D dynamic picture effect test
Hisense LED46XT39G3D dynamic picture effect test
Ten, Hisense LED46XT39G3D actual power test
Hisense LED46XT39G3D rated power consumption is 160W, compared to the power consumption of the ordinary CCFL LCD TV 250W is very power-saving, and from the author's evaluation experience, the actual power consumption is much lower than the rated power consumption. The author uses the instantaneous power consumption test method, which is to measure the power consumption values ​​of the six screens of red, green, blue, white, black and color transitions in the standard mode.
Hisense LED46XT39G3D power comparison test
From the results of the actual test, Hisense LED46XT39G3D in the standard image mode, the power consumption of the six screens is maintained between 138-141W, 46-inch power consumption is so low, energy-saving effect is very good.
Hisense 46XT39G3D is equipped with true +240Hz speed drive function, dynamic effect is ideal, and in the power consumption test, the use of LED backlight system 46XT39G3D also has good performance, the actual power consumption is only 138-141W, in line with energy saving The request. >>
Eleventh, Hisense LED46XT39G3D high-definition video test

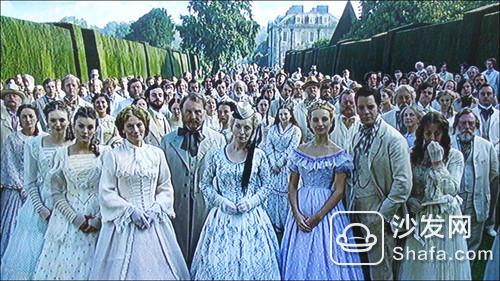

In the high-definition video test section, the author chose two films, Homeland and Ip Man 2 launched by China Hualu. The first evaluation is the documentary "Homeland". There are many pictures of the natural environment in the film, and the color is very rich. This will be able to better test the performance of Hisense 46XT39G3D on various colors.
Hisense LED46XT39G3D HD video test
Hisense LED46XT39G3D HD video test
Next is the more familiar action movie "Ip Man 2", the color is relatively monotonous, mainly in dark colors, colorful screen is rare, and more fighting action screen, it is convenient to test Hisense 46XT39G3D on black And dynamic picture performance.
Hisense LED46XT39G3D HD video test
Hisense LED46XT39G3D HD video test
Judging from the actual playback effect, Hisense LED46XT39G3D is ideal for high-definition video display, clear details, accurate color performance, but the performance of human skin color is slightly less accurate, some highlight images have noise. >>
XII. Hisense LED46XT39G3D browser and application store
As a smart TV, Hisense LED46XT39G3D has a powerful network function, built-in Web browser, full support for W3C standards, direct connection to the Internet mode, no intermediate server support, you can browse including Sina, Sohu, Netease and other sites .
Hisense LED46XT39G3D browser function
Hisense LED46XT39G3D browse Pacific Internet
Hisense LED46XT39G3D application store is unique to Hisense Smart TV and distributes various application software. Its English name is App Store, which allows users to download some newly developed applications from it.
Hisense LED46XT39G3D App Store
Hisense LED46XT39G3D can query the stock
Hisense LED46XT39G3D application store not only provides practical inquiries about weather, news, stocks, etc., but also has movie and television entertainment projects, which are divided into weekly updates, high-definition channels, hot movies and other types of film sources are quite rich.
Hisense LED46XT39G3D movie interface
Hisense LED46XT39G3D network video playback
The Hisense LED46XT39G3D's web browser can browse almost all web pages on the Internet. Users can purchase wireless mice and keyboards to connect with them, which is more convenient to operate. The application store provides a wealth of resources. The application software inside can be added and uninstalled at will, and the expansion capability is very powerful. >>
Thirteenth, Hisense LED46XT39G3D Chinese TV function
Hisense LED46XT39G3D comes with a HUAWEI TV user card. Consumers need only enter an account number and password to use the online TV content. Open the homepage, we can find that it will focus on the current events of the people's livelihood, the latest show of the film and television in an intuitive form, the left is divided into basic services, wonderful recommendations, television applications in three categories.
Hisense LED46XT39G3D number of TV main interface
Hisense LED46XT39G3D provides over 30 online news information, allowing users to catch current events and track hot events. The page is displayed in a graphic manner, which makes people feel at a glance. In addition, news programs can also be played online.
Hisense LED46XT39G3D China TV News Interface
Hisense LED46XT39G3D China TV news broadcast
In addition to news and information, Hua Digital Media also provided online entertainment information for more than 100 programs. Entertainment highlights, popular star concerts, and the latest MTV rankings were all included. The program content was updated in a timely manner.
Hisense LED46XT39G3D China TV entertainment information interface
Hisense LED46XT39G3D China TV entertainment information interface
Movies and television series are always the focus of attention. Hisense LED46XT39G3D has 320 wonderful movies online. Of course, movies like “Avatar†are included. In terms of TV dramas, it not only provided the mainland's hottest new dramas, but also included great dramas in Hong Kong, Taiwan and Japan and South Korea. It is convenient and practical for users who like to watch TV dramas.
Hisense LED46XT39G3D TV number TV screen interface
Hisense LED46XT39G3D TV number TV screen interface
Hisense LED46XT39G3D TV number TV screen interface
Hisense LED46XT39G3D cooperated with Hua Digital Media, greatly enriching its network TV function. News, information, entertainment, and film and television works are all very practical. It is also very convenient to operate. It can be said that the development of LCD TVs has taken a big step forward. >>
XIV, Hisense LED46XT39G3D streaming media USB test
Another highlight of Hisense LED46XT39G3D is the expansion of the USB streaming media video playback capabilities, can identify almost all high-definition decoding formats, the largest restored digital signal, VC1, H.264, MPEG2 and other high-definition video formats, can be more compatible , faster decoding, more true restore. Hisense XT39 series USB streaming media supports movie, music, images, and text file playback.
Hisense LED46XT39G3D USB streaming media player interface
I try to play a variety of formats on the LED46XT39G3D video, including TS, MKV, RMVB format can be played smoothly, XT39 series of USB streaming media playback capability is very powerful.
Hisense LED46XT39G3D 1080p Full HD TS format playback
Hisense LED46XT39G3D 1080p Full HD MKV format playback effect
Hisense LED46XT39G3D 480p standard definition RMVB playback
The XT39 series supports music playback mode. On its playback interface, it includes related information such as music list, music playback progress bar and track details, as well as tips for using the buttons.
Hisense LED46XT39G3D music player interface
XT39 series supports JPG and other formats for picture playback. From the screen display effect, the color reproduction is more accurate and the colors are bright and beautiful.
Hisense LED46XT39G3D picture playback
The XT39 series supports playback of formatted documents such as TXT. From the screen display effect, although the content of each page is very rich, the font is slightly smaller and it is not suitable for long-term viewing.
Hisense LED46XT39G3D TXT document playback effect
From the aspect of USB streaming media playback function, video, music, pictures, and document playback are supported, and the video function supports partial format full HD resolution playback. This is very practical for netizens who regularly download high-definition television programs from the Internet. The problem of consumer video sources has solved the problem of decoding and playing video. >>
Fifteen, PConline evaluation room summary
Hisense LED46XT39G3D is the latest smart 3D LED flagship TV released this year. It is built under the Blue-Running platform and uses the HiTv OS operating system. Users can install and uninstall third-party software, application stores, Web browsers, and TV sets. Its extended performance is quite strong, and Hisense's high-end technology can perform on the XT39G3D.
Hisense LED46XT39G3D picture evaluation forum offer
Through the detailed evaluation of the above multiple projects, PConline evaluation room summarizes the performance of Hisense LED46XT39G3D evaluation as follows:
2, HDMI interface can achieve full-resolution multi-resolution point-to-point;
3, black and white grayscale is clear and easy to identify, black level is good;
4, rich color performance, golden color and other accurate performance;
5, the dynamic picture is clear and clear, smear, ghost phenomenon is slight;
9, support a variety of formats USB video, music, picture playback.
Hisense LED46XT39G3D is positioned as a high-end LED TV. It adopts a two-color injection molding process using black and transparent crystals. The underside of the fuselage adopts a brushed silver alloy front panel design. The lines are simple and natural. The X-mechanics base is a subversion of tradition and the metal texture is strong. Hisense LED46XT39G3D is the largest of its kind is a smart TV, support the installation and uninstallation of third-party software, Web browser can browse almost all pages on the Internet, and China TV provides a rich video resources. In addition, the XT39 series of USB streaming media playback supports multiple formats of video, pictures, music, text format playback, both convenient and practical. [Back to Channel Home]
