With the development of intelligent hardware and network equipment, all hardware operations are inseparable from the network, from routers to televisions. At the same time, in a family, multiple televisions and multiple computers have become normal configurations. In addition, the office environment where everyone works will also have the presence of a computer. In order to complete the same task more quickly and easily, and realize remote control of NAS, PC, etc., even a remote switch machine becomes very important!
Remote control is divided into three levels of gameplay, namely entry, advanced, and hardware. The essence of remote control is remote boot, remote shutdown, and remote assistance.
First, start the gameGetting started is the most basic remote control method that allows basic remote control and remote assistance functions.
remote Assistance
The operating system WIN10 now has more than 60% of the market share. WIN10 also comes with remote assistance tools. It can enable remote assistance requests from the local machine, allowing remote access to the machine and other functions. This function is more basic and more practical.
Remote Desktop
By running the function, you can enter the MTSTC command to open the remote desktop function, and you can also achieve functions such as watching, assisting, and controlling.
The above two kinds of introductory gameplay are not high in requirements for hardware and software, and of course, the functions are relatively small, and only the most basic remote functions can be satisfied. Inevitably, connection instability may occur during the connection process.
Second, advanced gameplayIn addition to WIN10 comes with some of the tools, and then through a third-party tools to achieve remote control functions, the operation is relatively simple, as long as the two computers installed on the appropriate software. One party issues a controlled or controlled application, and the other party accepts it.
QQ
Almost everyone knows an instant contact tool, in addition to chat, file transfer and other functions, QQ also comes with remote assistance.
Open the dialogue with the friend, you can apply for control of the other computer or invite each other to control the machine for assistance. The disadvantage of QQ Remote is that it requires high network bandwidth, unstable connections, and cannot be left unattended. The basic function of QQ is still mainly based on instant messaging, remote control can only be used occasionally emergency. The advantage of QQ is free! ! !
The third eye
The third eye is an industry software that integrates screen monitoring, remote management, network control, document management, and behavior control. For employees to improve office efficiency, focus on computer control, network management and other functions. The disadvantage is that the third eye is a pure commercial software, and the purchase and use costs are higher.
TEAMVIEWER
TEAMVIEWER is more suitable for use by industry users. The free version has more restrictions on functions and the purchase requires a certain fee. TEAMVIEWER is more suitable for functions such as remote control, remote session, file transfer, and remote connection of mobile devices. It does not focus on monitoring and monitoring. The disadvantage is that it cannot interconnect with mobile terminals.
sunflower
Sunflower remote control software is more suitable for home users and currently supports PC and Android platforms. The function is also relatively complete, remote desktop, remote camera, file transfer, desktop presentation, remote boot (combined with hardware) can be achieved. The disadvantage is that in addition to the remote desktop, other parts of the feature are paid. However, the most attractive remote switch can be used free of charge as long as you purchase related hardware.
The Cyber ​​Spirit One is also a similar software with similar functionality.
In addition to the above several software, there are Slapshtop, Anydesk, Gotomycloud, VNC and other software can achieve remote desktop control, but most of the remote software work is based on the situation you open the computer, some software can achieve remote shutdown, restart, But basically can not achieve remote boot, or need to combine hardware.
Third, the hardware gameThe hardware gameplay is to achieve remote switch and remote control through a combination of software and hardware. Software functions are all based on the hardware foundation, so its strength lies in the remote boot.
The following several ways are all through the hardware can achieve remote boot.
1, smart socketThe smart socket is simpler, that is, a remote boot card. You can remotely control the computer's power on/off by dialing a phone or other means. You can perform server maintenance, unattended operation, and maintenance of the IPC.
The remote boot card is generally a PCI card, which is inserted into a computer motherboard for use. The disadvantage is that it needs to occupy the computer's PCI interface. It is bulky and inconvenient to disassemble, and the notebook computer cannot be used.
The intelligent routers such as dandelion and polar routing can all realize the remote boot function. Some of them have their own remote boot function. Some of them can enter the background to load the remote computer. The wake-up APP plug-in can realize the remote function, provided that the computer supports WAKE ON LAN function.
3, boot bar
The boot bar is a new type of remote boot hardware, which is connected to the internal LAN, with the corresponding software to achieve the purpose of internal network penetration through the RJ45 interface to wake up the computer to pass boot instructions, and achieve remote boot.
Said so many remote boot and remote control gameplay, followed by each introduction and experience for each game, this article describes the boot remote boot and control functions.
Fourth, remote switch machineTake the sunflower boot bar as an example to experience the function.
Orange small box, introduced the product specifications, not to mention stingy, relatively simple.
All products have boot bar, cable, manual.
Sunflower boot bar body is black matte rubber material, small size, portable.
The two ends are RJ45 ports, and the other side is the MICROUSB power supply port.
Boot bar connection
After connecting to the router, the three colors of red, blue, and green flash alternately and then turn green to connect to the network normally.
After the computer boots, download the program, register an account, and bind the boot bar.
Upgrade the exclusive version to the LAN version to 299 yuan, which can be remotely booted from a computer and turned on multiple computers remotely. The price of 290 yuan is not worth it, it needs the user to measure it.
Bind the boot bar to the host
The host computer's power on/off status can be displayed in the program.
Set the wakeup function of the wired network card

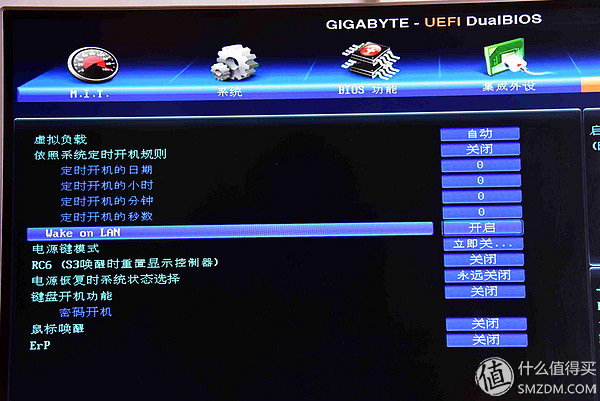

To ensure normal remote power-on, first turn off the motherboard's power-saving settings in the BIOS, and turn on wake-up and WAKE ON LAN functions.
In the off state, after the network cable is inserted into the network card, the indicator lamp will light up and the network wake-up function will be on standby.
Test remote boot and shutdown functions:
B85 WIN7 platform remote switch machine video
X99 WIN10 platform remote boot video
X99 WIN10 platform remote shutdown video
Fifth, remote controlAfter the remote boot is implemented, the next step is to perform remote control. Each computer has a unique identification code that can be remotely controlled through the identification code.
The control host only needs to know the identification code of the controlled host, enter the identification code in the software's remote assistance interface, and the controlled host accepts the connection request and can perform remote control. Response speed and connection stability are also acceptable.
APP side
PC side
Imagine a scenario: If an employee first enters the office and finds a PPT completed at home last night and forgets to carry it, the situation is very urgent. What should I do? No one is in front of the controlled computer. What should we do? This time you need to access the password remote function.
Turn on the computer through remote boot, and set the WINDOWS login password and access password. The main control computer accesses the control password directly through the management interface. The entire process controlled host can begin operation without consent.
APP side
PC side
Web site
The connection between APP and PC is very fast and the operation process is very convenient. In contrast, the web-side connection is not perfect, and the main problem is that the delay is large and the refresh is slow, giving people the impression that it is always slow. The main problem on the APP side is that the display interface is too small, the window cannot display the entire content, and the interface is moved back and forth. The operation is not very convenient.
During the period of using the product, at this time, the manufacturer's service department called and asked me if I needed to upgrade the renewal service. I said that I still need to consider Yunyun..... It can be seen that the main services and profit sources of Internet products are mainly through Service, not hardware.
The boot bar is really a fresh thing that can bring convenience to our lives. However, remote booting is a complex project after all. It requires the full cooperation of hardware and software to achieve real beauty.
advantage:1, good compatibility, different platforms, different hardware, different operating systems can be remote switch.
2. In the unattended situation, realize the remote control of the controlled host, a very practical function.
Disadvantages:1, in addition to the remote desktop function is permanently free, cameras, remote files and other functions to use point of advertising or sharing and exchange to use, artificial online customer service only paid version of the user can use. One word, if you look at money, if you don’t have money, the service will shrink dramatically.
2, remote boot, host BIOS need to turn off the energy, and open the "WAKE ON LAN" function, network card settings to open the wake-up function, are indispensable, set relatively complex.
